Chillers & Air Handlers

Chillers & Air Handler Rentals

Chillers are an integral part of a building’s HVAC system, but when they fail, businesses are left without essential cooling, which can interrupt commercial tenants’ operations or completely suspend a manufacturing process. Our packaged chillers offer a reliable temporary solution that can be applied to the building while repairs are underway. Custom-designed, this equipment transports and sets-up easily, and with units ranging 10 to 400 tons, they can satisfy a broad range of applications.



Features:
  • Mounted in rugged steel frames with lifting eyes and forklift pockets
  • 2”, 4”, or 6” Camlock hose fittings for supply and return water/glycol
  • Built-in pumps, or packaged with the units for quick and easy setup
  • Cam-Lok power connections for 208, 480, 575 or 600 volt applications
  • Fully programmable
Applications:
  • Commercial buildings
  • Food & Beverage manufacturing
  • Film Studio and set cooling
  • Industrial applications
Chiller

Equipment Selection:

30 Ton Chiller

ACC030H23

30 ton chiller rentalThis relatively compact chiller is a great solution when you have a smaller heat or process load that you need to cool down. Match it up with our 30 ton air handler and you have a very efficient closed loop. Even standing alone and tackling a heat load that was previously a problem, this star performer really shines. When tricky building conditions make cooling difficult, this is one of the most effective options to get the cooling you need.

Features:
  • Can be paired with our 30 ton air handler for convenient delivery of cool air.
  • Can be hooked into an existing chilled loop system to replace a damaged or broken chiller.
  • Positioning is simple; roll, forklift or hoist into place.
  • Requires 208 volt three phase power.
Applications:
  • Oil & Gas
  • Manufacturing
  • Film Studios
  • Large Commercial Buildings

Download Data Sheet

60 Ton Chiller

ACC060H43

60 ton chiller rentalThis robust chiller is a great solution when you have a building or a manufacturing process load that you need dealt with. Match it up with our 50-ton air handler and you have a powerful delivery of cool air into your workspace. As a direct tie-in and tackling a heat load that was previously a problem, this star performer really shines. When challenging environments make cooling difficult, this is one of the most effective options to get the cooling you need.

Features:
  • Can be paired with our 50-ton air handler for powerful delivery of cool air.
  • Can be tied-in to an existing chilled loop system to temporarily replace a damaged or broken chiller.
  • Positioning is simple; either forklift or hoist into place.
  • R-410
  • Voltage code – (460/3/60)
  • Across the line start
  • SP non fusible disc. switch
  • Control transformer
  • Both suction & discharge pressure readout kit
  • North American safety code (cETL)
  • Compressor crankcase heater
  • Differential pressure switch with flow safety interlock
  • ASME pressure vessel & associated codes
  • Pre-coated fin condenser coil
  • Wire enclosure panels (condenser only)
  • Low sound fans
Applications:
  • Oil & Gas
  • Manufacturing
  • Film Studios
  • Large Commercial Buildings

Download Data Sheet

100 Ton Chillers

ACC100H43 & ACC100H63

100 ton chiller rentalThese chillers pack 100 tons of cooling in a small footprint – use these machines when you have a large building or a manufacturing process load that you need dealt with. Use it on your next construction concrete pour when hydration is a concern, or directly tie-in to your existing closed loop while your chiller system is being repaired (or replaced). This star performer really shines. When challenging environments make cooling difficult, this is one of the most effective options to get the cooling you need.

Features:
  • Can be paired with our 50-ton air handlers for powerful delivery of cool air into large spaces.
  • Can be tied-in to an existing chilled loop system to temporarily replace a damaged or broken chiller.
  • Positioning is simple; either forklift or hoist into place.
  • Voltage code 480/3/60 or 600/3/60 with Cam-Lok connectors
  • VFD driven internal pump
  • By-pass feature for external pump connection
  • Low ambient operation
  • 4” Camlock or Gruvlok water/glycol connections
  • Variable load 7.5 to 100 tons
  • Low noise VFD controlled condenser fans
  • Digital display to monitor system conditions
  • Hot gas by-pass
  • R-410 refrigerant
  • ASME pressure vessel & associated codes
  • North American safety code (cETL)
Applications:
  • Manufacturing
  • Healthcare
  • Large Commercial Buildings
  • Oil & Gas
  • Construction

Download 480V Data Sheet

Download 600V Data Sheet

170 Ton Chiller

ACC170H43

170 ton chillerThis 170-ton chiller packs a lot of cooling in a relatively small footprint – select this machine when you have a large building or a manufacturing process load that you need to cool. Directly tie-in to your existing chilled water loop while your chiller system is being repaired (or replaced), this star performer really shines. When challenging environments make cooling difficult, this is one of the most effective options to get the cooling you need.

Features:
  • It can be integrated with 3x 50-ton air handlers for efficient delivery of cool air into large warehouse spaces.
  • It can be tied-in to an existing chilled loop system to temporarily replace a damaged or broken chiller.
  • Voltage Code – 480/3/60 with Cam-Lok connectors
  • VFD driven internal pump
  • By-pass feature for external pump connection
  • 4” or 6” Camlock or Gruvlok water/glycol connections
  • Variable load 30 to 170 tons
  • Low noise VFD controlled condenser fans
  • Digital display to monitor system conditions
  • R-410 refrigerant
  • ASME pressure vessel & associated codes
  • North American safety code (cETL)
Applications:
  • Manufacturing
  • Healthcare
  • Large Commercial Buildings
  • Oil & Gas

Download Data Sheet

200 Ton Chillers

ACC200H43 & ACC200H63

200 ton chiller rentalThese chillers pack 200 tons of cooling – use these machines when you have a large building or a manufacturing process load that you need dealt with. When challenging environments make cooling difficult, this is one of the most effective options to get the cooling you need.

Features:
  • Voltage code – 480/3/60 or 600/3/60 with Cam-Lok connectors
  • VFD driven internal pump
  • By-pass feature for external pump connection
  • 4” or 6” Camlock or Gruvlok water/glycol connections
  • Variable load 100 to 200 tons
  • Low noise VFD controlled condenser fans
  • Digital display to monitor system conditions
  • Hot gas by-pass
  • R-410 refrigerant
  • ASME pressure vessel & associated codes
  • North American safety code (cETL)
Applications:
  • Manufacturing
  • Healthcare
  • Large Commercial Buildings
  • Oil & Gas

Download 480V Data Sheet

Download 600V Data Sheet

220 Ton Chiller

ACC220H63

220 ton chiller rentalThis chiller packs 220 tons of cooling – use these machines when you have a large building or a manufacturing process load that you need dealt with. When challenging environments make cooling difficult, this is one of the most effective options to get the cooling you need.

Features:
  • Voltage code – 600/3/60 with Cam-Lok connectors
  • Internal pump
  • By-pass feature for external pump connection
  • Low ambient operation
  • 4” or 6” Camlock or Gruvlok water/glycol connections
  • Variable load 36 to 220 tons
  • Low noise VFD-controlled condenser fans
  • Digital display to monitor system conditions
  • Hot gas by-pass
  • R-410 refrigerant
  • ASME pressure vessel & associated codes
  • North American safety code (cETL)
Applications:
  • Manufacturing
  • Healthcare
  • Large Commercial Buildings
  • Oil & Gas

Download Data Sheet

30 Ton Air Handler

AHU030

Rental Air Handler UnitThese air handling units can be run off of either an existing building chilled water loop, adding additional cooling capacity, or tied into one of our rental chillers to form a temporary closed loop cooling system. If you do not have access to water, or the ability to vent heat out of a space, this equipment is just the right answer at a time of major trouble. When challenging building conditions make cooling difficult, this system provides a large-scale cooling solution.

Features:
  • For use with our 30, 60, or 100-ton chillers.
  • Positioning is simple; roll-in, forklift or hoist into place.
  • Ductable from either front face, or off the top of the unit.
  • Requires 208 volt, three phase power.
Applications:
  • Oil & Gas
  • Food & Beverage Manufacturing
  • Film Studios & Sets

Download Data Sheet

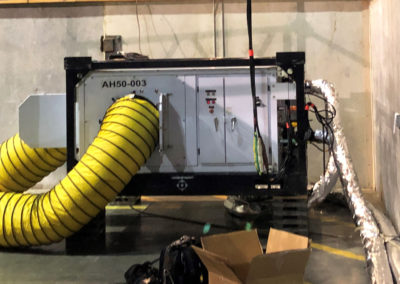

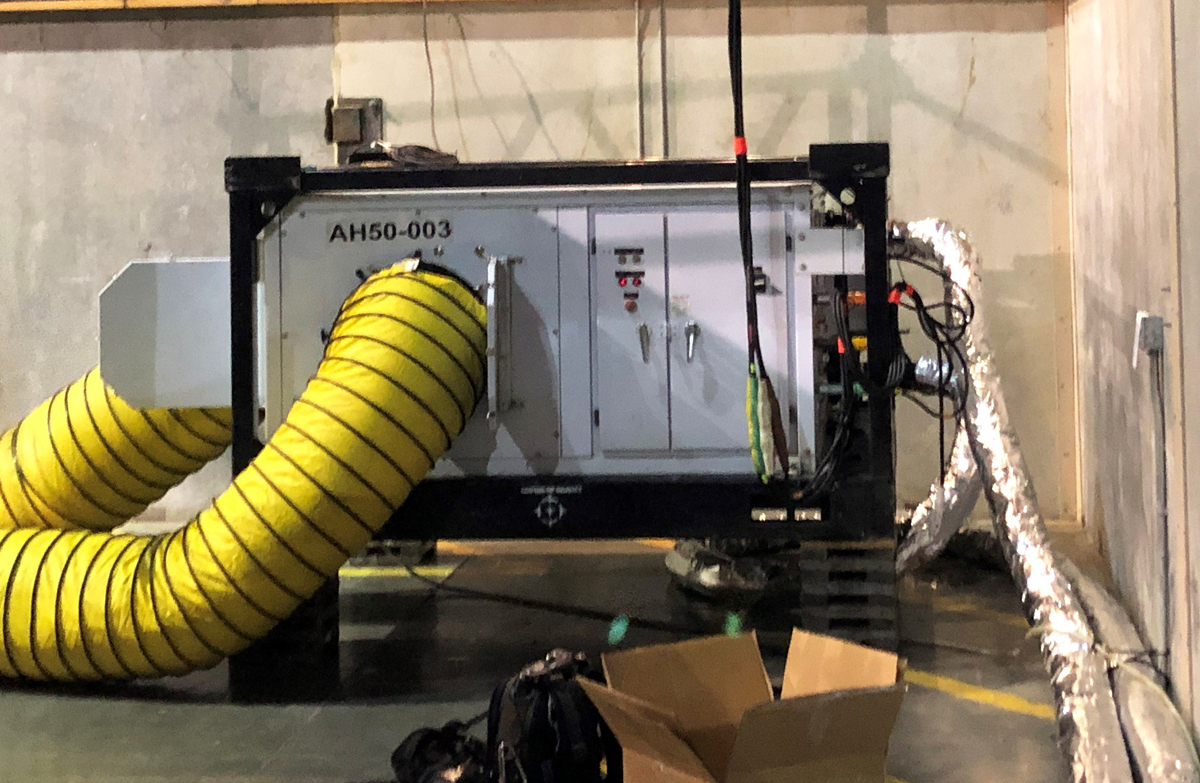

50 Ton Air Handler

AHU050

60 ton air handler rentalThese large air handling units move piles of air, and they run quietly enough to not interrupt your operations or neighbours in the vicinity. These units are weatherproof and can operate as a single unit, or extended with additional air handling units for large scale cooling jobs.

Features:
  • Can be matched with one of our portable chillers for the convenient delivery of conditioned air.
  • Easily tied into an existing chilled loop system.
  • Positioning is simple; forklift or crane into place.
  • Requires 460 or 208-volt, three phase power.
Applications:
  • Oil & Gas
  • Manufacturing
  • Film Studios
  • Large Commercial Buildings

Download Data Sheet
